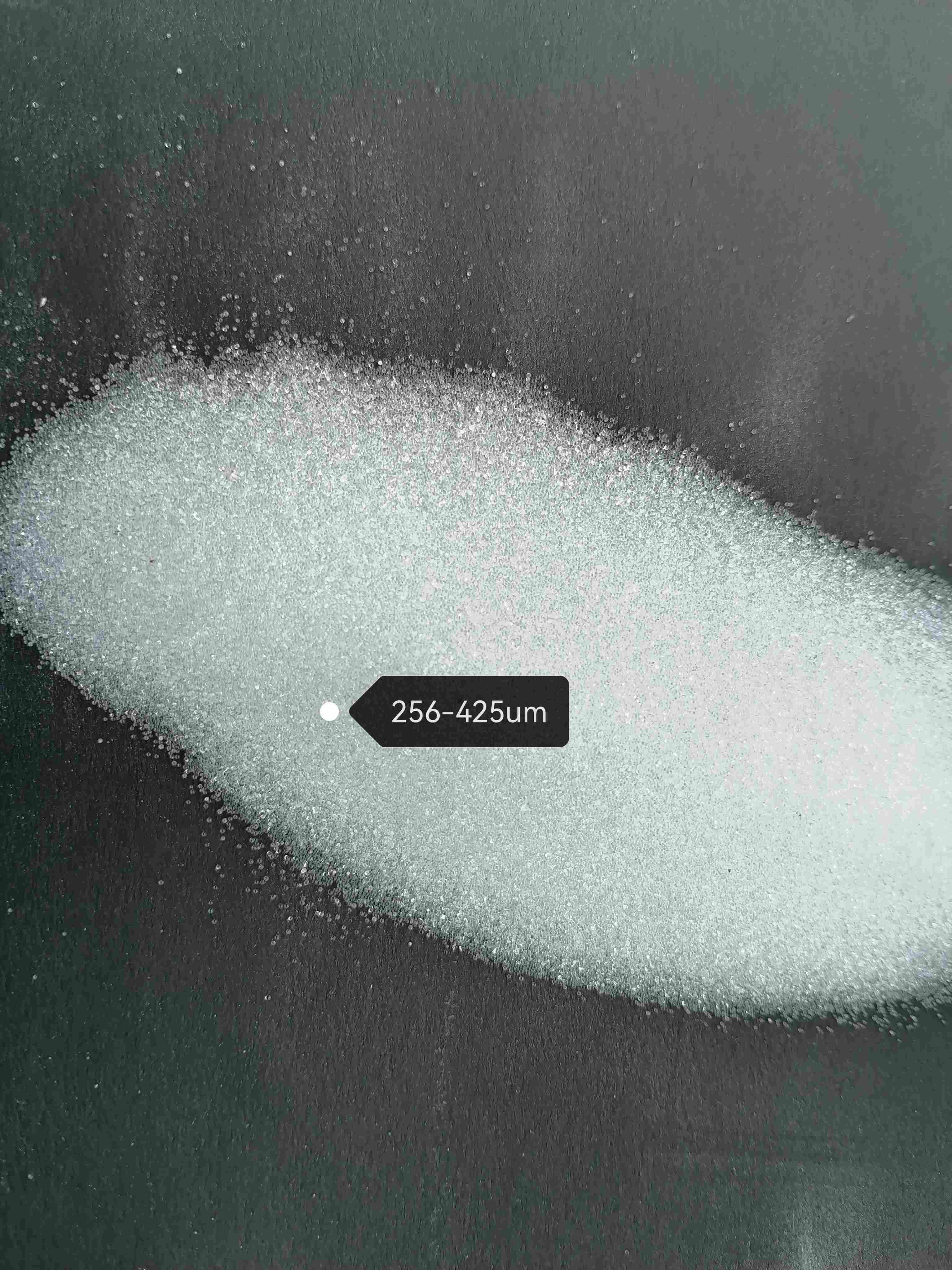

DH® Glass Beads
- Provide reflectivity in such products as traffic paint, signs and pavement marking tape
- Manufactured exclusively from recycled glass products, such as and windshields.
- When embedded in paint, they increase nighttime safety by shining brightly under headlights
- Increase paint life
- Reduce drying time, tracking and traffic tie-ups
- Industry recommends 20-30kg of beads per 100kg of paint
-
Application is easy and can usually be accomplished with standard highway marking equipment.
Technical Data of Glass Beads For Road Marking
Hardness
Specific Gravity
Bulk Density
Shape
Free Silica
Free Iron
Colour
Roundness
Reflectivity
6 - 7 Mohs
2.45—2.50 g/cm³
≈ 1500kg/m³
Spherical
NIL
< 1%
Clear
≥80%
≥1.5
Component Sheet of Reflective Glass Beads For Paint
SiO2
Na2O
MgO
CaO
Al2O3
K2O
others
71-73%
13-15 %
3-5%
8-10%
0.5-2%
0.2-0.6%
≤2%
Work Principle of Clear Micro Glass Beads
Reflective road paint beads play a necessary part in traffic safety because of their retro-reflective properties. This property lets in the motorist to truly see the pavement line markings greater truly at night and in moist conditions. When a car's headlight beam shines on a pavement marking that is integrated-embedded-saturated with reflective glass beads powder, the line stripes light up and come to be plenty less complicated to see at night. This effect is called the retro-reflection. Glass beads for road marking paint can be divided into two types: the intermix type and drop on, and the intermix type, which should be added directly in the road marking paint, and stir together. While, the drop on type is drawn in the pavement marking, not directly sprayed over the dry coating reflective micro glass beads.
How to Use Our Reflective Road Paint Beads
As a glass beads for road marking manufacturers, our reflective road paint beads are sold by using the 50-pound or 25kgs plastic bag or jumbo bag. The common utility will require 5-7 pounds of reflective road paint beads per gallon of USSC traffic marking paint. Reflective micro glass beads can be dropped into many special kinds of non-reflective paints to make them reflective.
